Features
- Supports Ultra SCSI rate up to 20MB/sec.
- 32bit DataBus and 33MHz operation .
- Supports Bus-Mastering data transfer.
- Ready for ACPI.
- Low power consumption.
- Supports scatter/gather and tagged queue .
- Linux Ready. Available for high-speed data backup.
- Supports Plug & Play, allows adding and removing SCSI devices without system re-start.
|
|
 |
|
 |
 TOP |
|
|
|
|
System Requirements
| One Free CardBus PC Card Slot. |
- Windows 7, Vista, Xp, 2003Server, 2000, Me, 98Se/98, 95C/95B and DOS
* Regarding DOS, contact our Tech support team.
- Linux Kernel 2.2, 2.4
| PowerBook G3/G4 with CardBus ready PC Card Slot. |
| |
-PowerBook G4 (Titanium)
-PowerBook 500, 400 (2000 Pismo)
-PowerBook G3/400, G3/333 (1999 Lombard)
-PowerBook G3/300, G3/292, G3/266, G3/250, G3/233 (1998,Wallstreet)
|
| MacOS X & 8.6 / 9 / 9.0.2 / 9.0.4 / 9.1 / 9.2 |
|
|
|
|
|
| TOP |
|
|
|
|

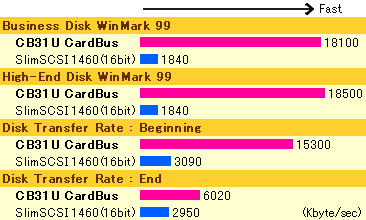

Test Results
Dell Inspiron 7000 (CPU:366MHz, RAM:128MB, OS:Windows 2000)
Seagate ST39103LW (SE mode), Adaptec SlimSCSI 1460(16bit Legacy PC Card)
 |
|
|
|
|
| TOP |
|
|
|
|
|
Specifications
| Bus interface |
CardBus (PC Card Standard) |
| Bus rate |
132MB/sec |
| SCSI data transfer rates |
20MB/sec with Ultra SCSI devices (synchronous)
10MB/sec with FAST SCSI devices (synchronous) |
| Termination type |
Internal active termination provided. |
| Package includes |
-
CB31U Ultra SCSI CardBus PC Card
-
Hi-Density 50pin cable (2feet)
-
Hybrid CD-ROM for Windows and Mac
* Windows Xp, 2000, Me, 98, 95 and DOS
* Mac OS X and 8.6/9.x
-
CB31U software CD-ROM for Windows Vista
* If the package doesn't include Windows Vista CD-ROM, refer to Software Download Page.
-
Quick install Guide
-
Software License Agreement
|
| Physical characteristics |
54mm (W) x 85.6mm (D) x 5mm (H) (Type II),
25g |
| Electromagnetic Emissions Standards |
CE Mark, VCCI/FCC Part 15, Class B |
| Operating requirements |
CardBus PC Card slot Power Requirement
-
+3.3V
-
130mA(idle), 300mA(MAX), 77mA(Power save mode)
Temperature 0°C to 55°C
Relative humidity 20% to 80% (non-condensing)
|
|
|
|
|
|
| TOP |
|
|
|
|
|
Optional Items
 |
|
Centronics 50 cable for CB31U Item# RCL-3001-10
Centronics 50Pin Cable for CB31
2feet
For CB31 PC Card |
|
| Price : $38.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
D-Sub 25 cable for CB31U Item# RCL-3004-05
Dsub25Pin cable
2Feet
For CB31 Cardbus PC Card |
|
| Price : $38.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
High-Density 50F to Centronics 50M Adapter Item# RCL-3005
 << Click here to enlarge the picture of Centronics 50 pin male connector(upper) and High Density 50 pin female connector(lower)
|
|
| Price : $29.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
High Density 50 Female to High Density 68 male Adapter Item# RCL-3068
 << Click here to enlarge the picture of High Density 68 pin male connector(upper) and High Density 50 pin female connector(lower)
SCSI HD50 Female to HD68 Male Adapter |
|
| Price : $29.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
High Density 50 Female to D-Sub 25 male Adapter Item# RCL-3025
 << Click here to enlarge the picture of D-Sub 25 pin male connector(upper) and High Density 50 pin female connector(lower)
|
|
| Price : $29.00 |
|
|
|
|
|
|
|
|
|
|
