US$ 399

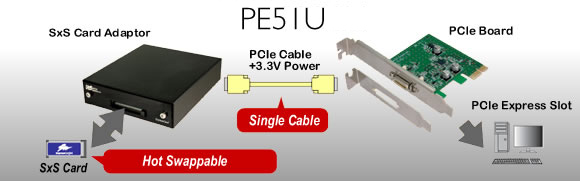

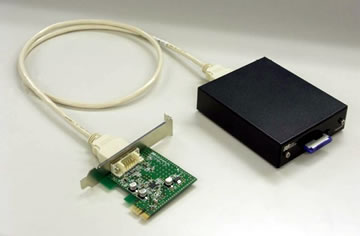

The PE51U is a SxS memory card adapter that supports 'Hot-Swap' on Windows and Macintosh. The proprietary driver makes it possible to swap memory cards without restarting the system.
The RE51U is fully compatible with Sony XDCAMEX. The SxS memory card will be recognized as a standard storage drive on both Windows and Macintosh.
|
| |
Features
- Fully compatible with SONY SxS Flash Memory Card.
- Support Plug & Play, Hot swap on Windows and MacOS X. Bundled with originally developed RATOC Card Service Driver. It brings media exchanging like video tape.

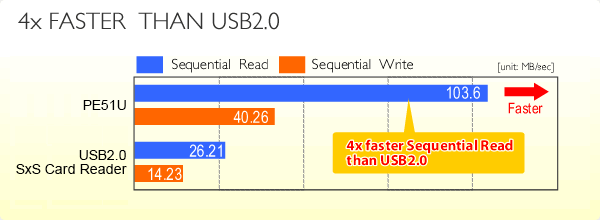

- High speed Read and Write.
- Fully compatible with PCI Express 2.0 and Express Card
Specification 2.0.
- Works as Standard Drive on Windows and MacOS X.
- Heavy duty. Use tough ExpressCard socket and PCIe extension cable.
System Requirements
- Supported Operating System
- Windows 7
- Windows Vista
- Windows XP(Latest Service Pack should be installed)
- Mac OSX 10.4.11 or later
- Mac OSX 10.5.6 or later
- Mac OSX 10.6 or later
- Supported Computer
- Windows PC PCI Express slot equipped.
- Intel Mac Pro
- Supported Media
- SxS-1 Card
- SxS Pro card
- SxS Memory Stick Adapter
- SxS SD Card Adapter
Software Compatibilities
The PE51U supports all major non linear video editing software. Please refer to the link below for details.
Sony | Micro Site - XDCAM EX
Specifications
| Model Number |
PE51U |
| Product name |
PCI Express to SxS Card External Adapter |
| PCI Express BUS Interface |
PCI Express Specification Revision 1.1
PCI Express x1 Lane, 2.5Gbps |
| ExpressCard BUS Interface |
ExpressCard Standard Release 1.0 P
CI Express(2.5Gbps), USB2.0(480Mbps) |
| ExpressCard slot |
1 slot ExpressCard/34 |
| Max power supply capability (to ExpreassCard) |
Max.1300mA/3.3V
Max.275mA/3.3Vaux
Max.650mA/1.5V |
| Dimensions |
ExpressCard Adapter 120(L) X 103.6(W) X 27.4(H) PCI Express add-in card 65.3(L) X 69.8(W) X 1.6(T) |
| Weight |
Total 760g |
| Operating Environment |
0°C to 40°C Operating Temperature
-20°C to 60°C Storage Temperature |
| Operational Humidity |
20 to 85% Relative Humidity, Non-condensing |
| Support OS |
Windows 7 / Windows Vista
(Latest Service Pack should be installed)
Mac OSX 10.4.11 or later / 10.5.6 or later / 10.6 or later |
| Supported Computer |
Windows PC PCI Express slot equipped.
Intel Mac Pro |
| Regulatory Compliance |
RoHS
FCC Class B Verified |
| Warranty |
1 year |
Driver Download
|
|
|
|
Windows 7
Windows Vista
Windows XP(Latest Service Pack should be installed) |
|
 Rev.1.0 |
April 2010 |
|
Mac OSX 10.4.11 or later
Mac OSX 10.5.6 or later
Mac OSX 10.6 or later |
|
Ver.1.0 |
April 2010 |
|
Manual and Installation Guide
Trademarks
Microsoft Windows® is a registered trademark of Microsoft
Corporation in the U.S. and other countries. Macintosh® is
a registered trademark, and Power Macintosh, Mac OS 9, Mac OS
X, FireWire are trademarks of Apple Computer. All other products,
services, names and registered trademarks are trademarks of respective
companies. XDCAM-EX, SxS, SxS Pro is a registered trademark of SONY Corporation. Word Mark and Logo Mark of ExpressCard is a registered trademark of PCMCIA.
Trademarks are used under license and/or permission to Ratoc Systems International, Inc.
|
