| TYPE | MODEL | LENGTH | PRICE | ORDER |
|---|---|---|---|---|

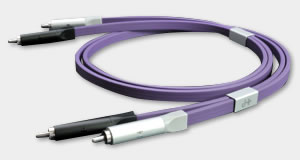

| OYAIDE NEO d+ RCA class S | d+ RCA class S 1.0m | 1.0m | US$189.00 |  |
| d+ RCA class S 2.0m | 2.0m | US$249.00 | |
|

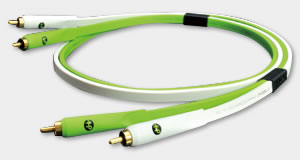

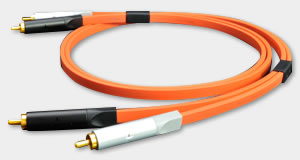

| OYAIDE NEO d+ RCA class A | d+ RCA class A 1.0m | 1.0m | US$139.00 | |
| d+ RCA class A 2.0m | 2.0m | US$169.00 | |
The d+RCA series is an analog audio cable designed with focus on an overall combination of digital audio systems, such as PC pure audio. Its chief strengths lie in providing connections between digital equipment (such as DAC or CD) and analog equipment.
For a digital audio system, which minimizes sound loss and produces no added overtones, the secret of reaching the best sound is to re-create the sound of the original source. The role of the cable in such a system is to transmit the signal, and therefore it is critically important to suppress transmission loss.
By employing a simple structure that eliminates any excess and a PCOCC-A conductor boasting a maximum 1.25sq, the d+RCA series achieves a remarkable improvement in conductivity. This enables the d+RCA series to substantially reduce transmission loss, distortion, high attenuation, etc., while providing excellent, highly efficient signal transmission. It clarifies sound detail while deviating from the annoyingly flat sound that is common in digital audio systems. Also, for compressed files such as MP3s, the authentic, deep, high-resolving sounds become possible simply by exchanging the cables.
Since its initial development phase, we have repeatedly incorporated the “cut and try method” with DAC or CD and actively reflected the feedback obtained from influential artists at the top of the field. With its refined sound quality and design, the d+RCA series is the analog audio cable that brings out the maximum potential of a digital audio system.
“d+ RCA series” is specialized for DJs and designed according to feedbacks of DJs, Artists, and clubs. By connecting between a DJ mixer and some DJ equipments such as CDJ or PCDJ, you can get a huge advantage about the sound quality.
Especially, by synergy effect with d+ USB series, they improve the sound qualities of DJ I/Os such as Serato SCRATCH LIVE or NI TRAKTOR and project the details of sound images. Although MP3 files tend to emphasize noise or sound which is not favorable for human ears, the d+ RCA series provides you smooth and stereoscopic sounds and reduces distortion and signal loss by its excellent electric property.
About the product planning for the d+ RCA series, we contemplated the best combination of important materials and factors such as its structure, conductor, insulator, shielding, outer sheath, and contact of plug.
As a matter of course, for not only a data compressed file but also WAV, AIFF, and CD, it contributes to dissolve the stiffness and shallowness of digital sounds.
In addition, its hi-definition playback property helps for making a good quality file recording for vinyl sound capturing.
Furthermore, although wiring has been regarded as messing up around a booth or a studio, the colorful and innovative product design of d+ series makes a stylish impression to artists who tend to think that the design is one of the most important factors for their motivation.
“d+ RCA series” improves the sound quality of DJ equipments and provides high performance for your DJ playing and sound production.
| Structure | Flat (Inverted concentric structure) | ||
| Conductor | PCOCC-A （0.18mm×52） | ||
| Sheath | Thermoplastic Elastomers | ||
| Insulator | Polyolefin | ||
| Terminals | Platinum + Rhodium plated phosphor bronze | ||
| Body | PBT + Glass Fiber | ||
| Outer cover | Aluminum | ||
| Attachment | Cable bag | ||
| Length / Price | 1.0m | US$189.00 | |
| 2.0m | US$249.00 | |
|
| Structure | Flat (Inverted concentric structure) | ||
| Conductor | PCOCC-A（0.18mm×33） | ||
| Sheath | Thermoplastic Elastomers | ||
| Insulator | Polyolefin | ||
| Terminals | 24K gold plated phosphor bronze | ||
| Body | PBT + Glass Fiber | ||
| Outer cover | Aluminum | ||
| Attachment | Cable bag | ||
| Length / Price | 1.0m | US$139.00 | |
| 2.0m | US$169.00 | |
|
| Structure | Flat (Inverted concentric structure) |
| Conductor | Highly pure OFC (Oxygen Free Copper)（0.18mm×33） |
| Sheath | PVC |
| Insulator | Polyolefin |
| Terminals | 24K gold plated phosphor bronze |
| Body | PBT + Glass Fiber |
| Outer cover | PVC |
| Length | 1.0m / 2.0m / 3.0m |
