Get natural sound out of PCM1704 without Oversampling and Digital filter.
RAL-24192DM1
- The first 24bit/192kHz USB Multi-bit DAC(PCM1704)
- Two Digital Audio ( High Speed USB and S/PDIF COAX ) input.
- No installation dedicated driver. Ready for 24bit/192kHz USB HD Audio stream.
- New featured S/PDIF processor.
- Three Analog Output.
- Noise free, Cross-talk free design.
System Requirements
Supported Digital Audio Input
- USB input
- - Windows PCs or Mac with Hi-Speed USB (480 Mbps) port
- - Windows 8, Windows 7, Windows Vista, Windows XP, Mac OS X 10.6.5 or later
* Windows 64 bit versions are also supported. - S/PDIF COAX input
Supported Analog Audio Output
- Balanced Stereo Lineout (XLR).
- Un-Balanced Stereo Lineout (RCA).
- One Head phone stereo output.
Specifications
| Name | 24bit/192kHz USB Multi-bit DAC | |
|---|---|---|
| Model Number | RAL-24192DM1 | |
| Inputs | Terminals | USB, S/PDIF COAX |
| Supported PC | Windows PC or Mac with Hi-Speed USB (480 Mbps) port | |
| Supported OS | Windows8, Windows 7, Windows Vista, Windows XP, Mac OS X 10.6.5 or later * Windows 64 bit versions are supported * Select 32-bit integer in the Audio-MIDI setup when playbacking 176.4 kHz sample rate data. |
|
| Supported Audio Input Format | USB:USB Audio Class 1.0 （Hi-Speed mode is required） Digital Audio Input:S/PDIF COAX L-PCM 24bit/16bit・192ｋHz/176.4kHz/96ｋHz/88.2ｋHz/48kHz/44.1kHz (2ch) |
|
| Outputs | Terminals | Balanced Stereo Lineout (XLR), Un-Balanced Stereo Lineout (RCA), Headphones (1/4" phone Jack) |
| Supported Audio Devices | Audio devices with Analog (XLR) inputs, audio devices with analog (RCA) inputs, headphones with a standard stereo plug (16Ω to 600Ω) | |
| Frequency Characteristics | DC～90 kHz (192 kHz during operation), 10 Hz to 40 kHz (96 kHz when operating), 20 Hz to 20 kHz (44.1 kHz when operating) | |
| Headphone rated output | Approx.15.3 mW × 2 ch ＠32 Ω (headphone output), 2 Vrms (RCA analog output) | |
| Power-supply Voltage | AC 100V, 50/60Hz | |
| Unit Dimensions/Weight | Approx. 215 (W) × 60 (D) × 276 (H) mm/Approx. 2 kg (not including protrusions) | |
| Items Included | RAL-24192DM1 unit USB cable (100 cm) AC100V Power Cable (3P Plug, 3P Inlet Plug is included) Operating Manual Warrantee |
|
- This device cannot input sound or voice data to the computer.
- This product was designed for use in Japan—there is no warrantee or support for overseas use.
- The names/product names listed here are registered trademarks.
- The look of the product and some specifications are subject to change without notice.
- Consumption tax is not included in the listed price.

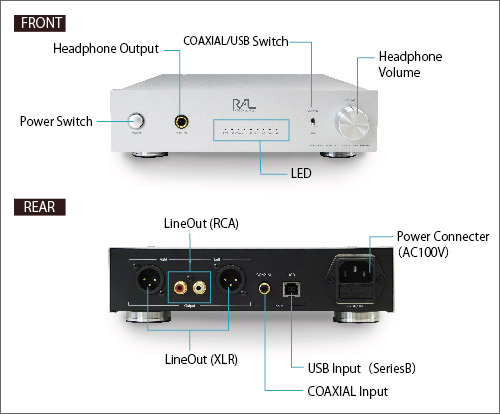

Product photos
