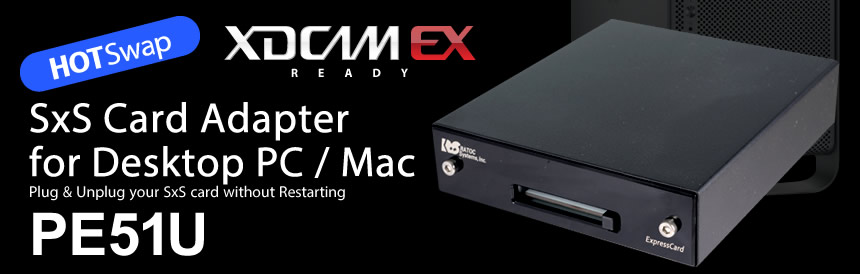

PCI Express to SxS Card External Adapter.
PE51U
- The PE51U is a SxS memory card adapter that supports 'Hot-Swap' on Windows and Macintosh. The proprietary driver makes it possible to swap memory cards without restarting the system.

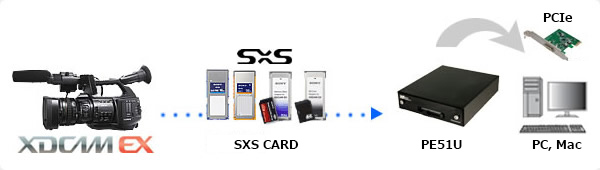

- The RE51U is fully compatible with Sony XDCAMEX. The SxS memory card will be recognized as a standard storage drive on both Windows and Macintosh.
- US$399.00
- Product Features
- System Requirements
- Specifications
- Service & Support
Product Features
The PE51U is a SxS memory card adapter that supports 'Hot-Swap' on Windows and Macintosh. The proprietary driver makes it possible to swap memory cards without restarting the system. The RE51U is fully compatible with Sony XDCAMEX. The SxS memory card will be recognized as a standard storage drive on both Windows and Macintosh.
- Fully compatible with SONY SxS Flash Memory Card.
- Support Plug & Play, Hot swap on Windows and MacOS X. Bundled with originally developed RATOC Card Service Driver. It brings media exchanging like video tape.

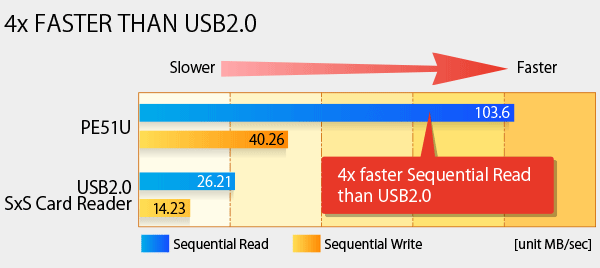

- High speed Read and Write.
- Fully compatible with PCI Express 2.0 and Express Card
Specification 2.0.
- Works as Standard Drive on Windows and MacOS X.

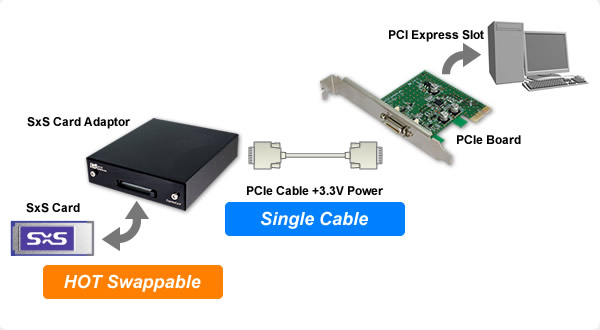

- Heavy duty. Use tough ExpressCard socket and PCIe extension cable.
Software Compatibilities
The PE51U supports all major non linear video editing software. Please refer to the link below for details.
Sony | Micro Site - XDCAM EX
System Requirements
- Supported Operating System
- Windows 7
- Windows Vista
- Windows XP(Latest Service Pack should be installed)
- Mac OSX 10.4.11 or later
- Mac OSX 10.5.6 or later
- Mac OSX 10.6 or later
- Mac OSX 10.6.8 or 10.7.x(Lion)
*See Download page.
- Supported Computer
- Windows PC PCI Express slot equipped.
- Intel Mac Pro
- Supported Media
- SxS-1 Card
- SBS-32G1
- SxS Pro card
- SBP-64A
- SBP-32
- SBP-16
- SBP-8
- SxS Memory Stick Adapter
- MEAD-MS01
- SxS SD Card Adapter
- MEAD-SD01
- Extream Pro Card
- SDADX6-CF-J20 (Express Card Adapter required)
Specifications
| Model Number | PE51U |
|---|---|
| Product name | PCI Express to SxS Card External Adapter |
| PCI Express BUS Interface | PCI Express Specification Revision 1.1 PCI Express x1 Lane, 2.5Gbps |
| ExpressCard BUS Interface | ExpressCard Standard Release 1.0 P CI Express(2.5Gbps), USB2.0(480Mbps) |
| ExpressCard slot | 1 slot ExpressCard/34 |
| Max power supply capability (to ExpreassCard) | Max.1300mA/3.3V Max.275mA/3.3Vaux Max.650mA/1.5V |
| Dimensions | ExpressCard Adapter 120(L) X 103.6(W) X 27.4(H) PCI Express add-in card 65.3(L) X 69.8(W) X 1.6(T) |
| Weight | Total 760g |
| Operating Environment | 0°C to 40°C Operating Temperature -20°C to 60°C Storage Temperature |
| Operational Humidity | 20 to 85% Relative Humidity, Non-condensing |
| Support OS | Windows 7 / Windows Vista (Latest Service Pack should be installed) Mac OSX 10.4.11 or later / 10.5.6 or later / 10.6 or later |
| Supported Computer | Windows PC PCI Express slot equipped. Intel Mac Pro |
| Regulatory Compliance | RoHS FCC Class B Verified |
| Warranty | 1 year |
Service & Support
- Manual / Drivers / Photo-image
- User's Manual
- Software Download
- Product Key Authentication Download
- Other Downloads
