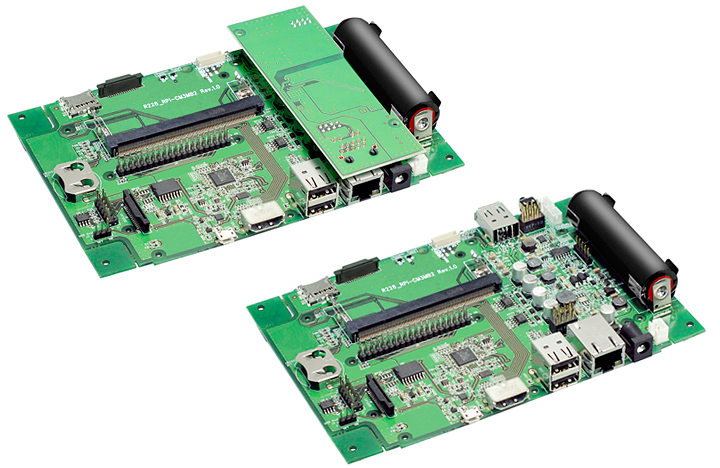

Main I/O board for Raspberry-Pi CM3
RPi-CM3MB2
RPi-CM3MB2-PoE
RPi-CM3MB2-PoE
- High-quality carrier board for Raspberry Pi CM3.
Support for Compute Module 3/3Lite.
Power ON/OFF circuit (Software shut-down).
Equipped with microSD slot for Compute Module 3 Lite.
Equipped with Li-ion battery that enables to supply power safely in case of loss of power.
Equipped with on-board 5V/3.3V/1.8V regulator.
Equipped with CSI connector and DSI connector.
Equipped with PoE port that can receive power feeding.
Specifications
Hardware specifications
| Product name | Main I/O board for Raspberry Pi CM3 Main I/O board for Raspberry Pi CM3 (PoE: Power over Ethernet) |
|
| Model numder | RPi-CM3MB2（L） RPi-CM3MB2（L）-PoE * RPi-CM3MB2L/RPi-CM3MB2L-PoE are bundled Compute Module 3 Lite |
|
| Supported Raspberry Pi |
Raspberry Pi Compute Module 3 Raspberry Pi Compute Module 3 Lite |
|
| LED1 (Power) | Green ON: Power ON Green Blink(0.3 seconds intervals): During shutdown Green Blink(1.0 second intervals): Charging(Power ON) Red ON: Require charging Red Blink(1.0 second intervals): Charging(Power OFF) |
|
| LED2 (Status) | Green Blink: Access to system | |
| LED3 (Shutdown ) | Green ON: Shutdown process is running |
|
| RTC ( Real Time Clock) | Available(CR2032 battery backup the RTC) | |
| Power switch | Button for power ON/OFF | |
| Power | DC +12V/3A * Supplied from DC jack or 2Pin XH connector |
|
| Consumption current | DC12V/220mA(Connected with HDMI, Raspbian Desktop start-up) | |
| Compatible plug | Center pin positive 12V/3A | |
| Receive power with PoE RPi-CM3MB2（L）-PoE only |
PoE Class4(48V/22.5W) | |
| Suitable environment | Temp：0 to 40℃、Humid：20 to 80%（not condensation） | |
| Dimensions RPi-CM3MB2（L） RPi-CM3MB2-PoE（L） |
約166mm x 112 mm (except projection) 約166mm x 112 mm (except projection) |
|
| Weight | RPi-CM3MB2（L） : Approx. 168g * Include Compute Module3, Coin battery, Li-ion battery RPi-CM3MB2-PoE（L） : Approx. 208g * Include Compute Module3, Coin battery, Li-ion battery |
|
| Compatible case | CM3MB2 series: TAKACHI ELECTRONICS ENCLOSURE CO., LTD. PF18-4-12, PF18-5-12（HAT extended board can be built into this product.） |
|
| I/O (microSD) | Push/Push slot | |
| I/O (HDMI®) | HDMI® Std.A connector * Max. 1080p/60(RaspberryPi specification) |
|
| I/O (USB Host) | USB Type A x3 （front x1/rear x2） Pin header x1 (Extended GPIO connector） * USB2.0 compatible |
|
| I/O (Ethernet) | 10/100BASE-TX RJ45 * RPi-CM3MB2(L)-PoE is compatible with PoE Class4（48V/25.5W） |
|
| I/O (GPIO) | HAT-Compatible 40Pin header Extended 8Pin header |
|
| Product content RPi-CM3MB2 |
RPi-CM3MB2 board CR2032 battery(For backup RTC) Appended document Guarantee Raspberry Pi Compute Module 3 Lite(Only RPi-CM3MB2L) |
|
| Product content RPi-CM3MB2-PoE |
RPi-CM3MB2-PoE board CR2032 battery(For backup RTC) Appended document Guarantee Raspberry Pi Compute Module 3 Lite(Only RPi-CM3MB2L-PoE) |
|
| Warranty | 1-year | |
| Manufacture(Country) | Japan | |
