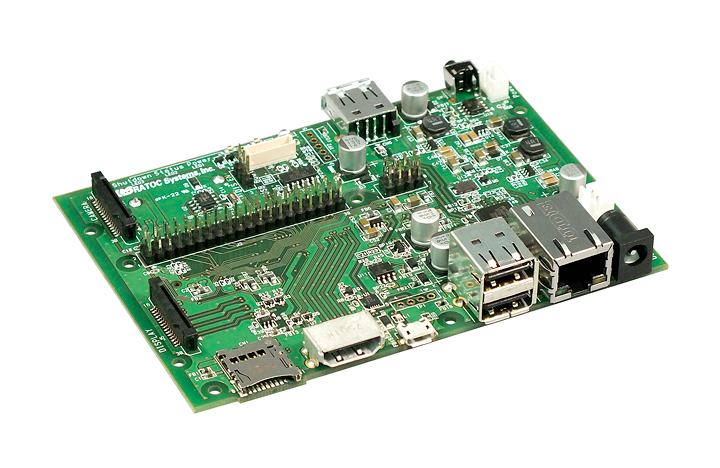

Main I/O board (small type) for Raspberry-Pi CM3
Buy now RPi-CM3MB3
RPi-CM3MB3
  • High-quality carrier board for Raspberry Pi CM3.
  • Compact size and easy to be embedded.
  • Support for Compute Module 3/3Lite.
  • Power ON/OFF circuit (Software shut-down)
  • Equipped with CSI connector and DSI connector.
  • Equipped with microSD slot for Compute Module 3 Lite.
  • Equipped with on-board 5V/3.3V/1.8V regulator.



Specifications

Hardware specifications

Product name Main I/O board (small type) for Raspberry Pi CM3
Model numder RPi-CM3MB3(L)
* RPi-CM3MB3L is bundled Compute Module 3 Lite
Supported Raspberry Pi Raspberry Pi Compute Module 3
Raspberry Pi Compute Module 3 Lite
LED1 (Power) Green ON: Power ON
Green Blink(0.3 seconds intervals): During shutdown
Green Blink(1.0 second intervals): Charging(Power ON)
Red ON: Require charging
Red Blink(1.0 second intervals): Charging(Power OFF)
LED2 (Status) Green Blink: Access to system
LED3 (Shutdown) Green ON: Shutdown process is running
RTC (Real Time Clock) Available(CR2032 battery backup the RTC)
Power switch Button for power ON/OFF
Power DC +12V/3A
* Supplied from DC jack or 2Pin XH connector
Consumption current DC12V/220mA(Connected with HDMI®, Raspbian Desktop start-up)
Compatible plug Center pin positive 12V/3A
Suitable environment Temperature: 0 to 40 degrees Celsius
Humidity: 20 to 80% (non-condensing)
Dimensions
RPi-CM3MB3(L)
120mm x 84mm (except projection)
Weight
RPi-CM3MB3(L)
Approx. 82g
* Include Compute Module3, Coin battery, Li-ion battery
Compatible case CM3MB3 series: TAKACHI ELECTRONICS ENCLOSURE CO., LTD.
PF18-4-12, PF18-5-12(HAT extended board can be built into this product.)
I/O
microSD
Push/Push slot
I/O
HDMI®
HDMI® Std.A connector
* Max. 1080p/60(RaspberryPi specification)
I/O
USB Host
USB Type A x3 (front x1/rear x2)
Pin header x1 (Extended GPIO connector) * USB2.0 compatible
I/O
Ethernet
10/100BASE-TX RJ45
I/O
GPIO
HAT-Compatible 40Pin header
Extended 8Pin header
Product content RPi-CM3MB3 board
CR2032 battery(For backup RTC)
Appended document
Guarantee
Raspberry Pi Compute Module 3 Lite(Only RPi-CM3MB3L)
Warranty 1-year
Manufacture(Country) Japan
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
