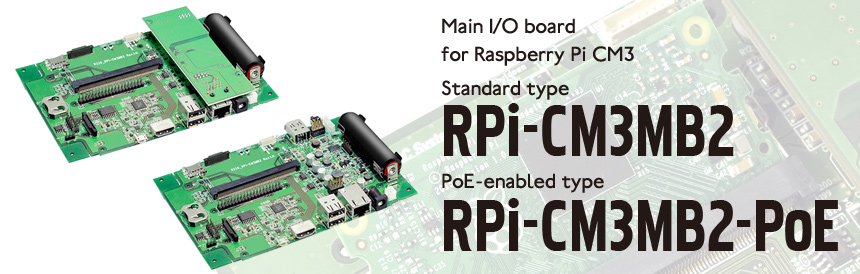

Main I/O board for Raspberry-Pi CM3
Buy now RPi-CM3MB2
Buy now RPi-CM3MB2P
RPi-CM3MB2
RPi-CM3MB2-PoE
  • High-quality carrier board for Raspberry Pi CM3.
    Support for Compute Module 3/3Lite.
    Power ON/OFF circuit (Software shut-down).
    Equipped with microSD slot for Compute Module 3 Lite.
    Equipped with Li-ion battery that enables to supply power safely in case of loss of power.
    Equipped with on-board 5V/3.3V/1.8V regulator.
    Equipped with CSI connector and DSI connector.
    Equipped with PoE port that can receive power feeding.



Product Features

High-quality carrier board for Raspberry Pi CM3.

RPi-CM3MB2(PoE) carrier board supports for SoM[Raspberry Pi Compute Module 3/3 Lite] that is introduced into industrial equipment and embedded device for IoT.

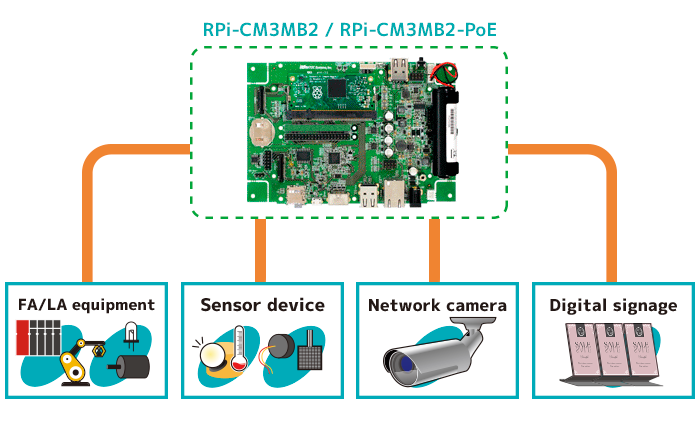

This product is suitable designing for emmbedded system, and widely used to control FA/LA, sensor device, network camera, and digital signage by using Modbus.

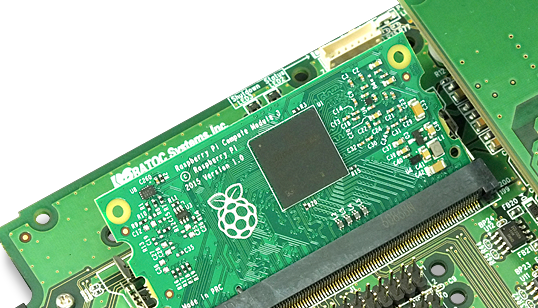

Support for Compute Module 3/3Lite.

RPi-CM3MB2(PoE) supports for SoM[Raspberry Pi Compute Module 3/3 Lite] that is introduced into industrial equipment and embedded device for IoT.
Setting Compute Module to SO-DIMM of this product and running the application to control device enables to build various control systems.

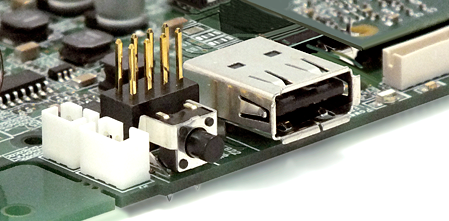

Power ON/OFF circuit (Software shut-down).

This product has a shut-down button for power ON/OFF.
It is not necessary to insertion and removal of power-supply cable, and avoid unexpected overcurrent on insertion and removal.


Equipped with microSD slot for Compute Module 3 Lite.

By using microSD card on the board, OS can be started up with Compute Module 3 Lite that does not have flash storage.
Also in addition to initial cost-cutting, in case of system trouble it enables to reduce down-time by preparing backup system.

Equipped with Li-ion battery that enables to supply power safely in case of loss of power.

This product has a Li-ion battery for reserve power in case of unexpected loss of power.(Lightning damage, cable disconnection etc.)
When loss of power occurs, power supply switchs to reserve power automatically, and the system shut-down automatically before the battery runs out.

Equipped with on-board 5V/3.3V/1.8V regulator.

RPi-CM3MB2(PoE) has on-board 5V/3.3V/1.8V regulator to provide a steady supply of power to various devices.

Equipped with CSI connector and DSI connector.

This product has CSI and DSI connectors that can connect camera module and display module compliant with Raspberry Pi.

Equipped with PoE port that can receive power feeding.

Ethernet port on RPi-CM3MB2-PoE is conformity with the standard "PoE"(Allows a Ethernet cable to transfer data and/or power).
