Main I/O board (small type) for Raspberry-Pi CM3
Buy now RPi-CM3MB3
RPi-CM3MB3
  • Industrial main I / O board compatible with Raspberry Pi CM3.
    Small size and easy embedded layout.
    Ready for Compute Module 3/3 Lite.
    Equipped with Power On / Off circuit.
    Equipped with a microSD slot for using Compute Module 3 Lite.
    Equipped with an onboard regulator that supports 5V / 3.3V / 1.8V.
    Equipped with CSI connector and DSI connector.



Product Features

Industrial main I / O board compatible with Raspberry Pi CM3.

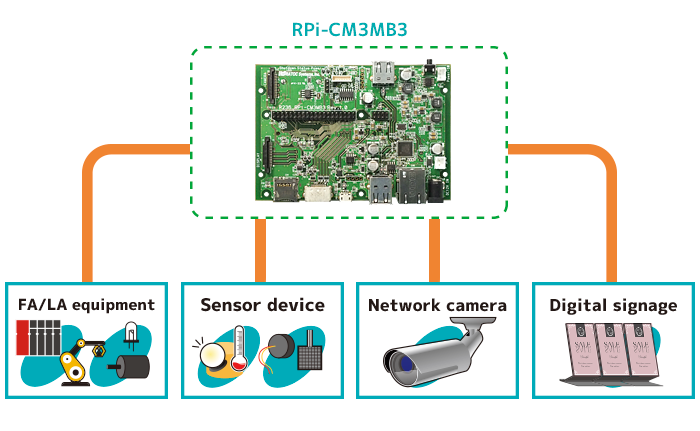

RPi-CM3MB3 is the main I / O board for Raspberry Pi suitable for product embedding. It supports the built-in SoM Raspberry Pi Compute Module 3/3 Lite. this product is smaller in size than it is flanked product "RPi-CM3MB2" and "RPi-CM3MB2-PoE", and can be used for thin client terminals such as industrial device products, video display systems, gateways for infrastructure and data loggers.


Small size and easy embedded layout.

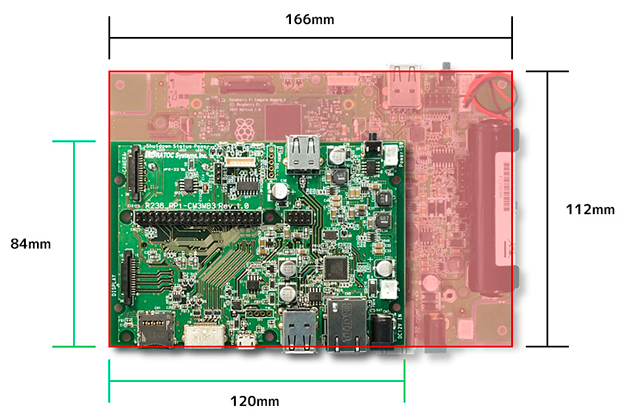

RPi-CM3MB3 is 120mm x 84mm, which is about 46% smaller than the RPi-CM3MB2 (166mm x 112mm). Due to its miniaturization, it can be incorporated into a smaller housing.


Ready for Compute Module 3/3 Lite.

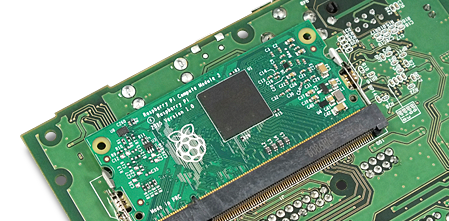

RPi-CM3MB3 is compatible with SoM "Raspberry Pi Compute Module 3/3 Lite (hereinafter: CM3 / CM3 Lite)" for embedded equipment.
By setting CM3 in the SO-DIMM slot of this product and operating the application suitable for the connected device, it is possible to build various control systems.


Equipped with Power On / Off circuit.

This product is equipped with a shutdown hardware button that allows you to turn the power on and off with the touch of a button. Not only does it prevent unexpected overcurrents when plugging and unplugging, it also eliminates the need to plug and unplug the power supply cable that connects to the Raspberry Pi.

Equipped with a microSD slot for using Compute Module 3 Lite.

It is natural to use this product with RaspberryPi CM3, but even if you use a Lite model without flash storage, you can start the OS by inserting an SD card in the microSD slot mounted on the board.
Not only can you reduce the initial cost, but if you have a system problem, you can reduce the downtime in the recovery work by creating a backup system.

Equipped with an onboard regulator that supports 5V / 3.3V / 1.8V

RPi-CM3MB3 is equipped with a 5V / 3.3V / 1.8V on-board regulator for more stable power supply, assuming connection with various devices.

Equipped with CSI connector and DSI connector.

This product is equipped with two connectors, CSI and DSI, so that you can connect a Raspberry Pi camera module or a device that complies with the display module.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
