IR Control board (UART/USB compatible) for Raspberry-Pi
RPi-IREX
- A learning kit that you can actually use while learning manufacturing techniques.
The infrared learning function uses a learning method that does not depend on the infrared format.
Equipped with infrared LEDs in 9 directions, it is possible to irradiate signals to the hemisphere.
It is equipped with firmware that can control the infrared learning / transmission function with commands.
There are two patterns of connection, HAT type (UART) and USB connection.
The manual required for setup and the sample code required for control are published.
It can also be applied to Homebridge, which can be controlled by voice operation such as Siri.
Specifications
Hardware specifications
| Product name | IR Control board (UART/USB compatible) for Raspberry Pi |
|
| Model numder | RPi-IREX | |
| Supported | Raspberry Pi with GPIO pin header, or extended with I/O board | |
| Supported remote control | Infrared remote control(SONY/NEC/AEHA, other unique format) * This product is not supported remote control except infrared communication such as RF remote control. * Not all remote controls are supported. |
|
| Status Indication LED1 |
Green ON: Power ON(USB mode) Green Blink: Output infrared signal(USB mode) Red ON: Power ON(UART mode) Red Blink: Output infrared signal(UART mode) |
|
| Status Indication LED2 |
Red ON: Learning infrared signal |
|
| Status Indication LED3 |
Green ON: Enable to control with GPIO 40Pin(GPIO 12) Red ON: Enable to control with GPIO 40Pin(GPIO 11) |
|
| Infrared (Send) |
High-output infrared LED x9 | |
| Infrared (Receive) |
Infrared receiving element communicates with remote control | |
| Infrared (effective range) |
Irradiation distance 10m(max.) * Receivable range is differ according to the performance of home electrical appliances(receiving side). Horizontal direction 360-degree(max.) Vertical direction 180-degree(max.) |
|
| Interface1 GPIO |
UART | |
| Interface2 micro USB |
USB2.0 CDC Class | |
| Tact switch | Input GPIO40Pin(GPIO7) | |
| Connection | GPIO40Pin or USB | |
| Required power | +5V(provided by GPIO40Pin or USB) | |
| Consumption current | Approx. 400mA | |
| Suitable environment | Temp：0～40℃、Humid：20～80%（not condensation） | |
| Dimensions | 65.0 x 56.5 mm *Protrusions are not included in the dimensions. |
|
| Weight | about 20 g | |
| Product content | RPi-IREX board GPIO 40P pin header M2.6 spacer x4 M2.6 screw x8 User's manual and Guarantee |
|
| Warranty | 1-year | |

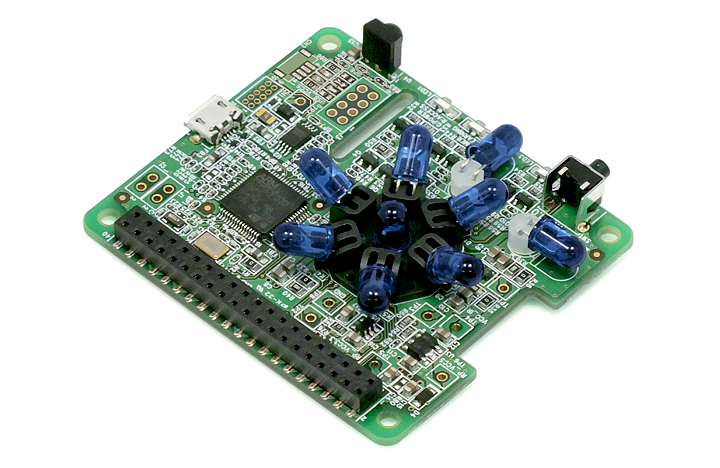

Product Photo
