Isolated I2C Pulse signal I/O board for Raspberry-Pi
RPi-GP90
- Pulse Timer/Counter Input/Output, PWM output Raspberry Pi HAT board.
- 16ch PWM output and 4ch pulse input/output on the board.
- 16ch PWM output and 4ch pulse input/output on the board.
- 8 functions are available with pulse input/output(4ch/16bit).
- PWM output: 16ch/12bit, Adopt NXP PCA9685
- Isolates between PWM output/pulse I/O and GPIO40pin(Isolation Voltage 2.5kV)
- Open sample source code and setup guide to use this product on Rasperry Pi.
Specifications
Hardware specifications
| Product name | Isolated I2C Pulse signal I/O board for Raspberry Pi |
|
| Model numder | RPi-GP90 | |
| Interface | GPIO40pins > I2C | |
| PWM Controller |
NXP PCA9685 | |
| PWM Output | 16ch, 12bit | |
| Pulse Input/Output | 8 Pulse Input, 8 Pulse Output(4ch, 16bit) |
|
| Pulse Resolution |
Minimum pulse width 50us(Maximum input frequency 10kHz) | |
| Isolation Voltage | 2.5kV(PWM output/pulse I/O - GPIO40pin) *It is non-isolated between the |
|
| Required power | +5V/+3.3V(provided by GPIO) | |
| Consumption current | MAX 5V/150mA, 3.3V/15mA | |
| Suitable environment | Temp ： 0 to 40℃ Humid ： 20 to 80%（not condensation） |
|
| Dimensions | 65.0 x 56.5 mm *Protrusions are not included in the dimensions. |
|
| Weight | about 22 g | |
| Product content | RPi-GP90 GPIO 40P pin header M2.6 spacer x4 M2.6 screw x8 appended document warranty |
|
| Software | Python3 sample program | |
| Warranty | 1-year | |
| Manufacture(Country) | Japan | |

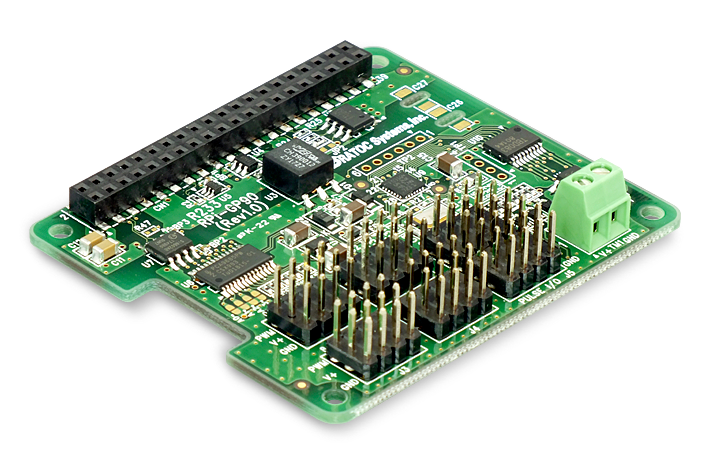

Product Photo
